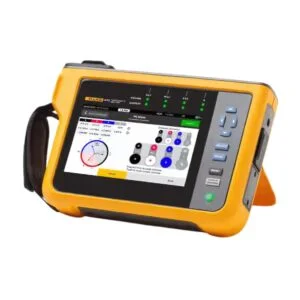

Fluke 1777

Fluke 1770 Series Three-Phase Power Quality Analysers eliminate the complexities of power quality logging, troubleshooting, and analysis. Engineered to be the faster, easier way to perform power quality studies, the 1770 Series offers automatic measurements, a straightforward user interface and setup, best-in-class specifications, and a simplified reporting platform. The instrument can also be powered directly from the measurement circuit, eliminating the need to find a power outlet or use a lengthy extension cord. With the 1770 Series you’ll never miss a critical power quality event—from fast transients up to 8 kV, harmonics up to 30 kHz, dips and swells, as well as the voltage, current, and power measurements that enable you to characterise your electrical system.

AUTOMATIC MEASUREMENT CAPTURE

• Automatically captures over 500 power quality parameters by default.
• Ensures accurate data collection for quick system checks or in-depth power quality studies.
• Offers flexibility to adjust and select specific parameters based on your needs.
• Features a guided setup for easy parameter selection, tailored to your system.
• Instantly view, download, and share data with Fluke Energy Analyse Plus software.
• Analyse results without waiting for session completion.

ULTIMATE MEASUREMENT CONFIDENCE

• Combines the functionality of a power quality meter with a power quality analyzer in one handheld device.
• ‘PQ Meter’ mode provides live, onscreen data for quick troubleshooting in the field.
• ‘PQ Logging and Analysis’ mode simplifies power quality studies with a guided setup for accurate data collection.
• Features measurement connection autocorrect to ensure reliable measurements every time.
• Eliminates the need for repeat measurements, saving time and effort.

POWERFUL ANALYSIS SOFTWARE WITH EASY-TO-CREATE REPORTS

• Simplifies downloading, analysing, tracking, and reporting power quality and energy data.
• Compare results to historical values or industry benchmarks for deeper insights.
• Visualize data in real-time to create a complete picture of your facility’s performance.
• Unified support for Fluke 1730, 1740, and 1770 Series devices.

     Key Features:

• Easy setup and downloads via USB stick, WiFi, LTE, Ethernet, or USB cable.
• PC application software supports both “in-workshop” and “in-the-field” use.
• Automated reporting for standardized formats (EN 50160, IEEE 519, GOST 33073, IEC 61000-2-2).
• Export data in PQDIF, NeQual, or CSV formats for third-party software.
• Advanced customization to analyze any logged parameter and identify detailed correlations.

HIGH SPEED VOLTAGE TRANSIENT CAPTURE

• Transients can disrupt systems and damage equipment, causing issues like insulation failures or total equipment breakdowns.
• The Fluke 1775 and 1777 Power Quality Analyzers use advanced transient capture technology to help you identify and address high-speed voltage transients effectively.
• Fluke 1775 features a 1MHz sampling capability for capturing fast transients.
• Fluke 1777 offers an impressive 20MHz sampling capability, delivering highly detailed data on the fastest transients.
• Gain the insights you need to protect your equipment and maintain system reliability.

• New Firmware Update: Energy Loss Calculator
• Automatically measure power and power quality parameters
• At-a-glance power quality health for faster troubleshooting
• Easily view V/A/Hz, power, dips, swells, and harmonics data
• Capture high-speed transients up to 8 kV
• Power directly from measurement circuit without a line cord
