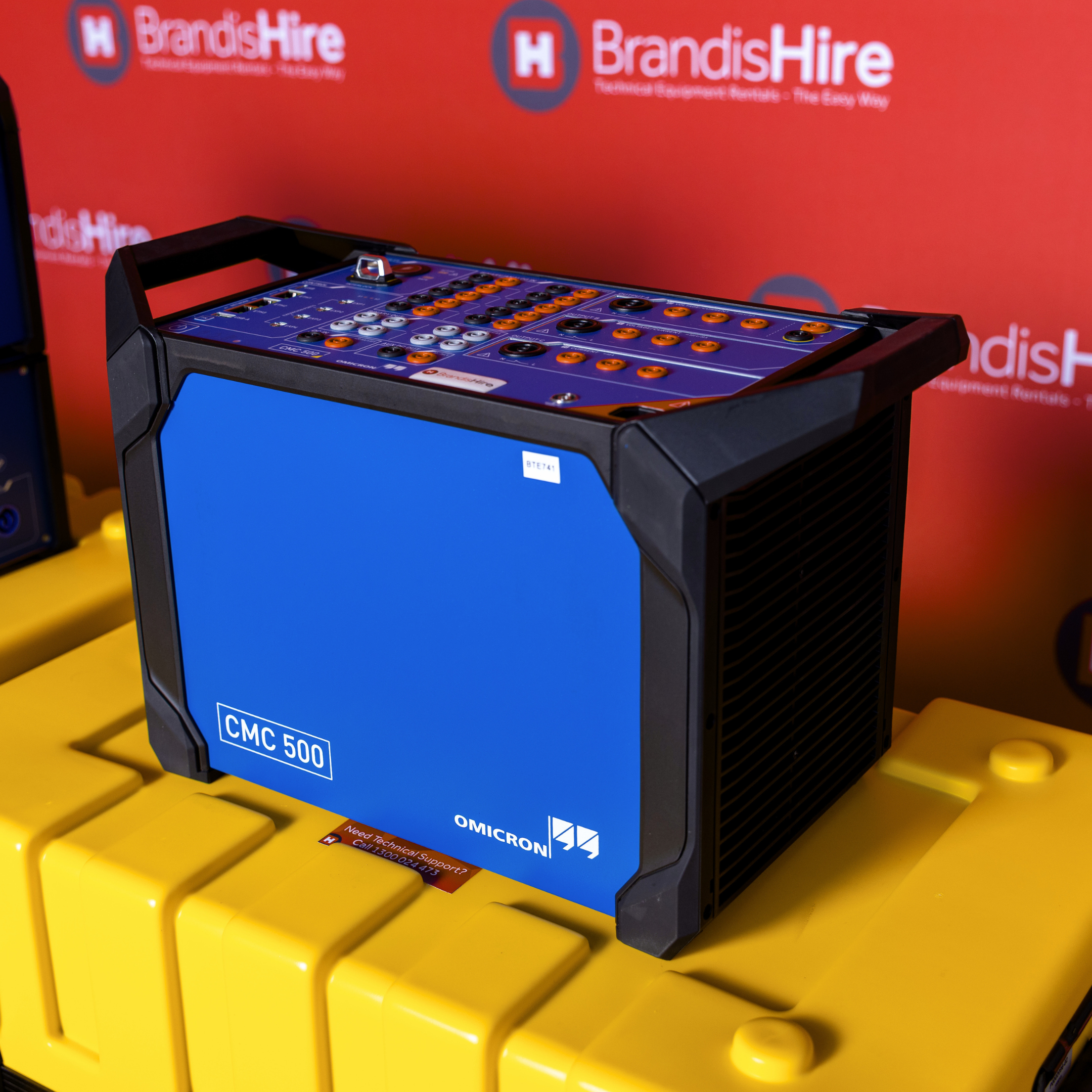

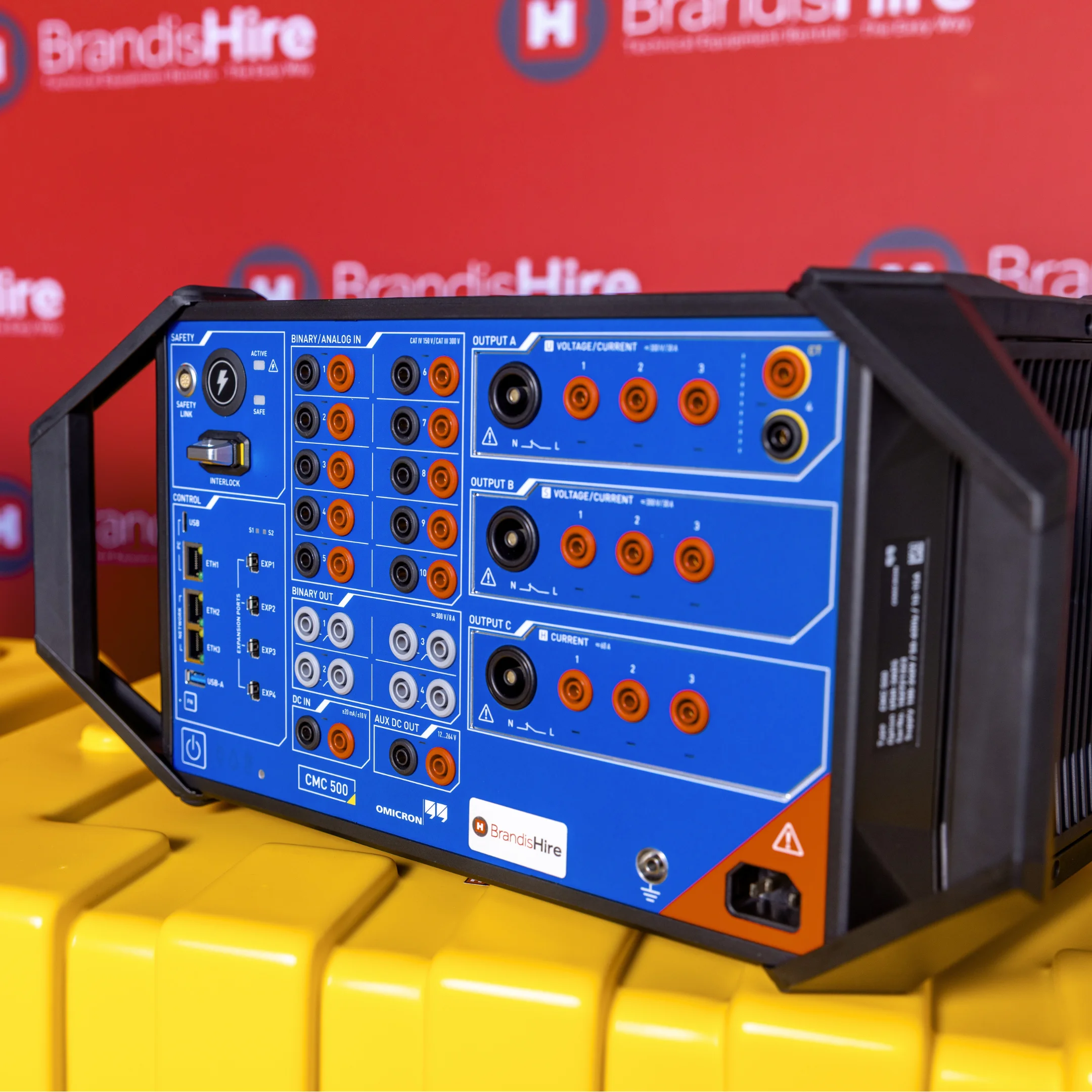

OMICRON CMC 500 (USH-3ADS) Standard Package
OMICRON CMC 500 is a modular multi-phase protection relay test set for commissioning, maintenance and IEC 61850 substation testing with high accuracy.
Daily rates
Cost per day
$625
$562.50
$468.75
$393.75
Duration (days)
1-7
8-14
15-28
29-90
Typical Hire Periods
Cost
$4,375
$7,875
$11,812.50
$23,625
Duration
week
fortnight
1 month
2 month
All prices are ex-GST
Description
The OMICRON CMC 500 is a modular, multi-phase protection relay test set designed for commissioning, maintenance, and troubleshooting of modern power system protection schemes. It provides precise and flexible testing of protection relays across transmission, distribution, and industrial networks.
With advanced software integration such as Test Universe and RelaySimTest, it supports both traditional relay testing and dynamic system-level simulations. The CMC 500 is fully compatible with conventional and IEC 61850 digital substations, including GOOSE, MMS, and sampled values.
Compact and portable, it delivers high-accuracy current and voltage outputs for complex multi-phase testing, making it ideal for substation engineers who need a powerful and reliable field testing solution for protection systems and related electrical equipment.
Need dependable equipment for your next project? Hire now to enjoy fast delivery, flexible rental options, and expert support every step of the way. Get the right products when you need them. Secure your rental today on 1300 024 473.
Click here to explore our range of Electrical Testing Equipment and find what you need!
Key Features
- Multi-phase testing with high current and voltage output
- Supports IEC 61850 (GOOSE, MMS, Sampled Values)
- Advanced automation with OMICRON Test Universe software
- Built-in safety features and visual indicators
- Cybersecure design for critical infrastructure
- Compact, lightweight, and field-ready
- Real-time measurement, recording, and reporting
- Flexible, modular configuration for different applications

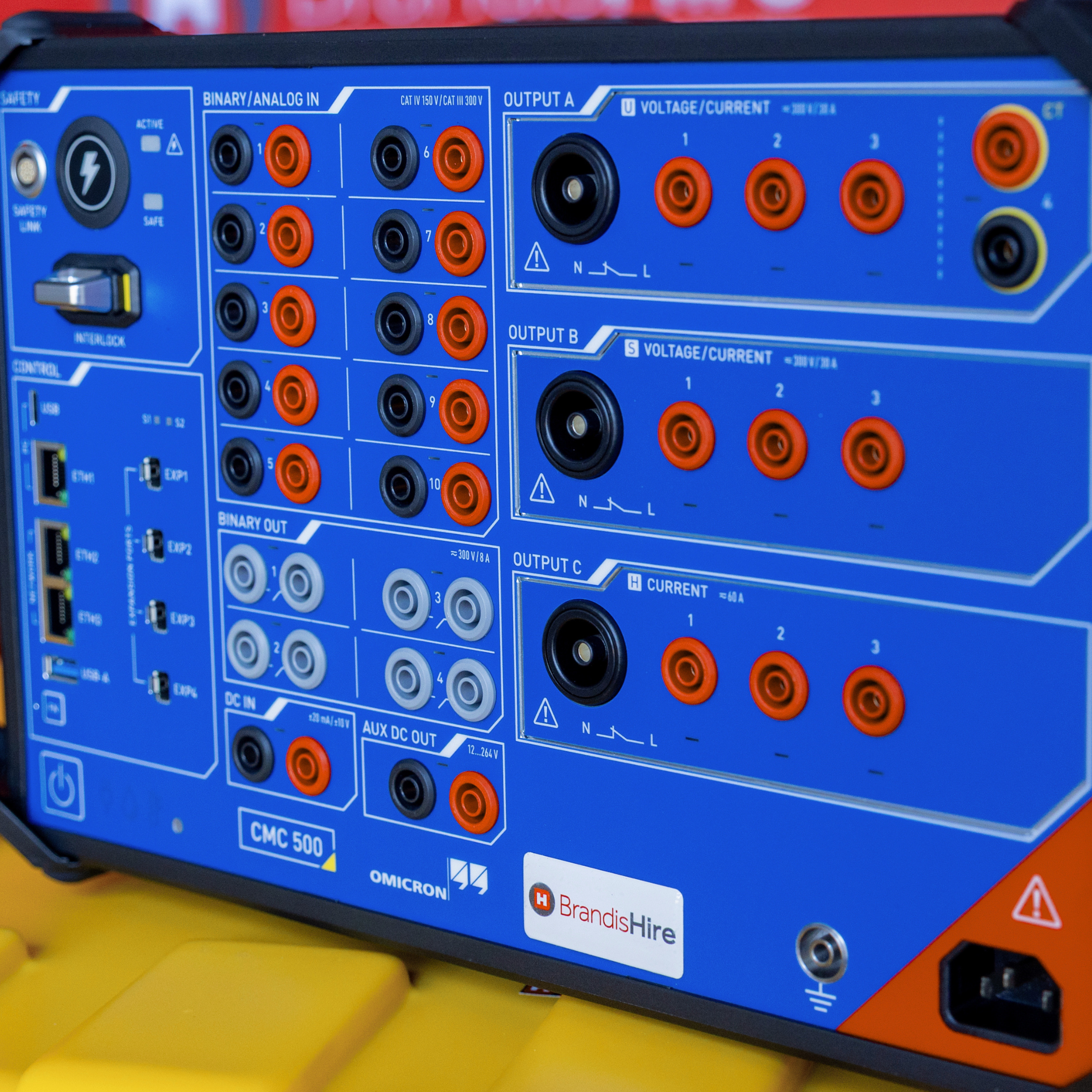

Specification
- Standard Accessories: Transport case, Connection adaptors, Software CD, Test Leads, Computer interface cables
- Power Supply: 100 – 240 VAC
- Voltage Outputs: Up to 7 independent AC/DC sources, configurable 0–300 V
- Current Sources: Up to 10 independent sources; configurable ranges including 6 × 12.5 A, 3 × 25 A, or 1 × 75 A
- Generator Combination Sockets: Multiple combinations depending on configuration for high-current applications
- Binary Input Channels: 10, potential-free or DC voltage compared to threshold
- Binary Output Relays: 4, potential-free, independently controlled
- DC Aux Supply Output: 0–264 VDC, max. 50 W
- Operating Temperature / Humidity Range: 0 °C to 50 °C, 20–95 % RH (non-condensing)
- Dimensions: 600 mm × 450 mm × 350 mm
- Weight (Instrument only): 13.8 kg
- Software & Protocols: Supports Test U
Benefits
- Save time on site with fast setup and automated testing
- Reduce risk with reliable, repeatable test results
- One unit, multiple applications—minimise the need for extra equipment
- Future-proof your testing with full digital substation capability
- Work safely and confidently with built-in protection features
- Ideal for short- or long-term hire, giving you flexibility without capital investment
Applications
- Protection relay testing and commissioning
- Substation maintenance and troubleshooting
- IEC 61850 digital substation testing
- Primary injection testing
- CT and VT testing
- Circuit breaker testing
- Power generation, transmission, and distribution projects
Resources & Downloads
Manuals
Data Sheet
