HV 800TR Interface C Test Rods

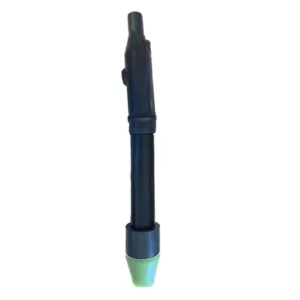

Euromold 400TR & 800TR test rods are medium voltage test rods specified to find cable fault location, phase checking and cable testing. Connections may be made with a cable lug, 4mm plug or spring clips.

The medium voltage test rods are installed at the back of a T-connector or elbow connector to check and monitor the electrical condition of the connector and power system

Euromold 800TR test rod can be used with 480TB, 484TB or 489TB – all suitable for use with Interface C Compact type bushings on SF6 gas-insulated switchgear.

Connector accessories include: dead-end receptacle, dead-end plug, stand-off plug and earthing plug for type C interfaces.

Euromold 400TR test rod can be used with:

• Tee connector 400TE
• Tee connector 400TB/G
• Tee connector 440TB/G
• Coupling connector 440PB/G
• Compact tee connector 430TB/G
• Coupling connector 300PB/G

Euromold 800TR test rod can be used with:

• Compact tee connector 480TB/G,
• Compact tee connector 484TB/G
• Compact tee connector 489TB/G
• Coupling connector 800PB/G
• Coupling connector 804PBG
• Coupling connector 809PB/G

– all suitable for use with Interface C Compact type bushings on SF6 gas-insulated switchgear.

• MV HV Equipment Bushing Connector – Interface C Compact
• Voltage Class A.C. – 36kV Max
• Voltage Class D.C. – 96kV Max
• Terminate & Connect Cables – Polymeric XLPE EPR
• Applications – MV HV Switchgear, Transformers, Motors
• Maximum A.C. test voltage (50 Hz – 1 min): 33kV 36V
• Maximum D.C. test voltage (8 x U0 – 30 min): 96kV
• Impulse voltage (1.2 x 50 µs) min: 95kV
• Conductive EPDM insulating shroud

The HV 800TR Interface C Test Rods and HV 400TR Interface C Test Rods, available for hire at Brandis Hire, are designed to simplify and enhance various aspects of medium voltage testing. These test rods excel in these applications:

• Cable fault location
  The 400/800TR Test Rods play a pivotal role in locating faults within cables. Their precision and adaptability in connecting to cable lugs, 4mm plugs or spring clips make them an efficient choice for identifying and addressing cable issues promptly.
• Phase checking
  Ensuring accurate phase checking is essential in maintaining the integrity of power systems. The 400/800TR rods, compatible with Interface C Compact type bushings on SF6 gas-insulated switchgear, provide a reliable means of phase checking, contributing to the overall stability of electrical networks.
• Cable testing
  With the capability to connect seamlessly to different interfaces, the 400/800TR test rods facilitate thorough cable testing. This application is critical for verifying the performance and reliability of cables in various settings, from industrial facilities to utility-scale power systems.
