PDTD60-2 Partial Discharge Diagnostics System


Model number
Shipping details
hard case Fliter 45kg 84L 54W 46H Hard Case 45kg 84L 54W 46H
Daily rates
Cost per day
Duration (days)
Typical Hire Periods
1 month
2 month
All prices are ex-GST
Committing to 3, 6 or 12 months?
Call us on 1300 024 473 for fantastic long term hire rates.

Request to Hire

- +
Retrieving your quote
Cost Estimate
Hire ()
Sorry there has been an error. Please try again
We will be in touch to confirm your order

Got Questions?
Give us a call, we are happy to help.


The Partial Discharge Diagnostic System PDTD60-2 (in combination with a VLF generator) enables comprehensive diagnosis with sinusoidal output voltage with constant frequency, which is a prerequisite for the comparison of PD and TD measurement results of cables with different lengths. Load-dependent and, therefore, constantly changing measurement frequencies offer no basis for this. The sine wave output voltage is the only described VLF voltage form in IEEE 400.2-2013 for partial discharge and tan delta measurements and provides clear procedures and quality control procedures. The comprehensive monitoring and diagnostics software b2 Suite® makes the diagnostic process easier. The software also quickly processes data and can be retrieved at any time.

Key Features

  • Compact, light and portable devices;
  • Simultaneous Partial Discharge and Tan Delta measurement;
  • b2 Suite® – comprehensive diagnostic software and database;
  • Display of cable route on OpenStreetMap®;
  • Very simple and clear measurement process;
  • Manual and automatic diagnostic mode;
  • Exact PD localization (PD mapping);
  • Phase-resolved PD display (PD Pattern);
  • PD Magnitude;
  • PD inception and extinction voltage;
  • PD rate;
  • High noise suppression by filtering;
  • Very high accuracy for Tan Delta measurement;
  • Extensive reporting;
  • Test setup according to IEC 60270 and calibration;
  • Monitored Withstand Test (MWT) according IEEE400.2-2013;
  • PD and TD measurement unit in one device; and
  • PD and TD measurement unit in battery operation.



Article number: SH5031

Input supply voltage: 110/240 VAC, 50/60 Hz

Operating voltage:

  • sinusoidal 44 kV rms, 60 kV peak
  • frequency 0.01-0.1 Hz in steps of 0.01 Hz default: 0.1 Hz (auto frequency)

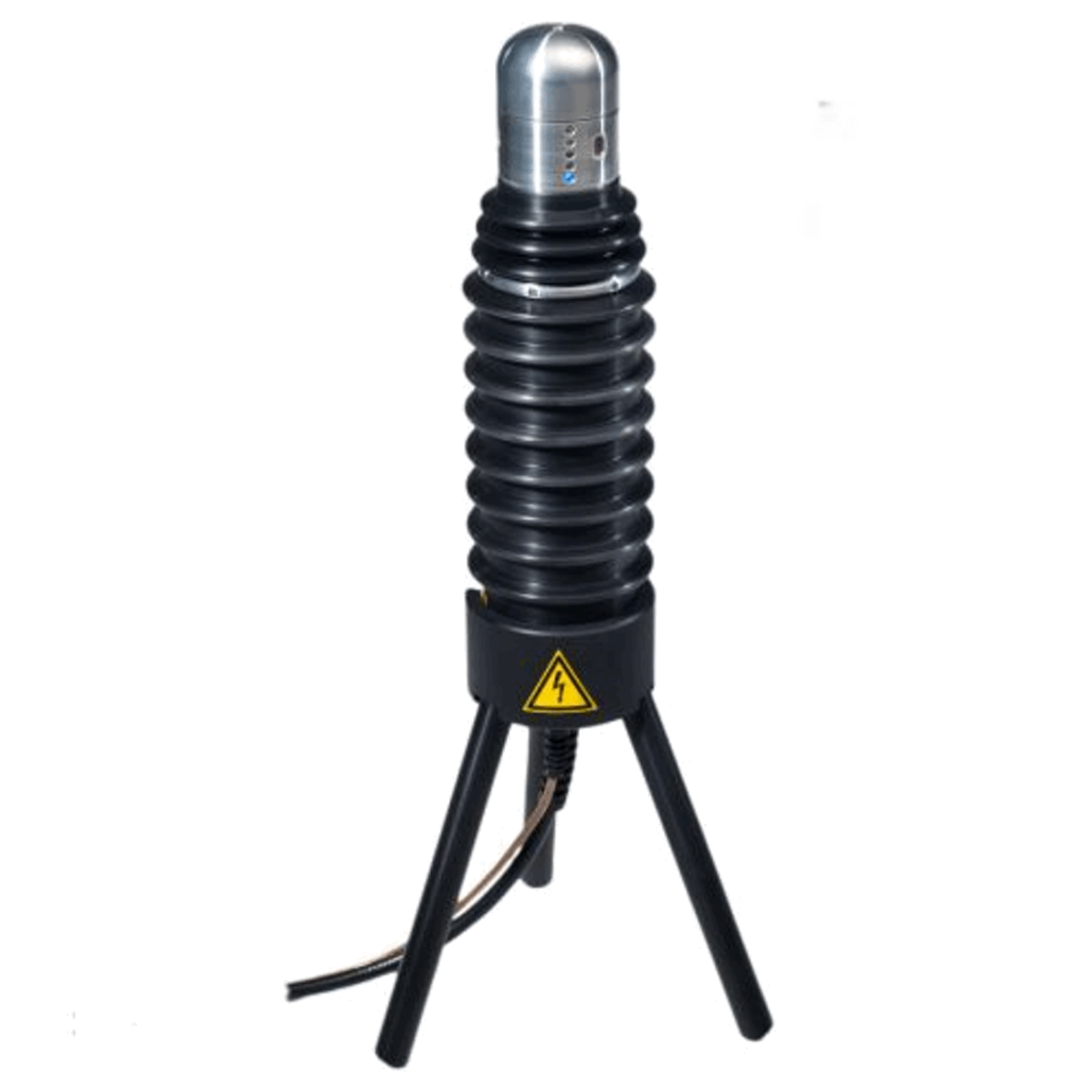

HV coupling capacitor:

  • capacitance ~ 1 nF
  • dimensions, weight L 330 x W 280 x H 730 mm, 20.7 kg

HV filter capacitance: ~ 1 nF dimensions, weight L 300 x W 280 x H 720 mm, 19.9 kg

Filter: analog & digital

Velocity range (v/2): 10-150 m/µs

Measuring range: 100 km

PD background level: < 10 pC

PD localization accuracy: 1% PD resolution 0.1 pC, 0.1 m

Sample rate: 200 MS/s

Bandwidth: 100 MHz, analog filter

Signal amplification: 0-52 dB (1 channel) , 0-72 dB (2 channel)

Environment: temperature: storage -20°C to + 65°C, operating -5°C to + 45°C



Output Voltage:

  • sinusoidal 44 kV rms, 60 kV peak
  • frequency 0.1 Hz, 0.01 to 0.1 Hz1

Measuring range: 0.1 x 10-3-999 x 10-3

Voltage measurement:

  • resolution 0.1 kV rms
  • accuracy 0.5 % of reading

Current measurement:

  • resolution 1 µA rms
  • accuracy 0.5 % of reading

Tan Delta measurement:

  • resolution 1 x 10-5
  • accuracy ± 1 x 10-4

Load range: standard 500 pF to 10 µF

Weight and dimensions: incorporated in the PD coupling capacitor


  • Power industry inspections — The PDTD60-2 is crucial for inspecting high-voltage cables in power plants and substations. Its precision in detecting partial discharges ensures early identification of insulation flaws, averting potential failures. This proactive maintenance tool significantly enhances grid reliability and safety.
  • Industrial cable testing — Ideal for industrial settings, this device accurately assesses cable health in factories and production facilities. It ensures uninterrupted operations by pinpointing partial discharge in electrical cables, a critical factor in preventing unexpected downtime and costly repairs due to electrical failures.
  • Utility network maintenance — Utility companies benefit from the PDTD60-2’s capability to monitor and diagnose cable conditions across vast networks. Its advanced diagnostics can help maintain the integrity of underground and overhead lines, thereby reducing the risk of outages and extending cable lifespan.
  • Infrastructure projects — The device is an asset in large-scale infrastructure projects, offering detailed cable diagnostics during construction and maintenance phases. Its ability to conduct thorough cable condition assessments ensures the electrical stability and longevity of critical infrastructure components.
  • Research and development — In R&D settings, the PDTD60-2 is invaluable for testing and validating the performance of new electrical components and materials. Its precise measurements and diagnostic capabilities provide essential data for developing more durable and efficient electrical systems and parts.

Hire the PDTD60-2 Partial Discharge Diagnostics System today

As Australia’s one-stop shop for technical equipment rentals, Brandis Hire offers the PDTD60-2 — a versatile solution for your project’s success. Enjoy flexibility with no minimum hire periods, benefit from 4-hour free technical support and let us handle the logistics with Australia-wide delivery.

Start your project with confidence, backed by Brandis Hire’s expert support and nationwide reach​. Submit a booking request now or reach out to us for more information.


Why choose the PDTD60-2 Partial Discharge Diagnostics System?

The PDTD60-2 offers unparalleled precision in detecting partial discharges in high-voltage cables, crucial for maintaining electrical infrastructure. Its compatibility with various cable lengths and types, coupled with advanced diagnostic software, makes it an indispensable tool for ensuring safety and reliability in power networks.

Its compact, portable design and comprehensive feature set, including PD mapping and high noise suppression, means it’s an ideal choice for professionals seeking accurate and efficient cable diagnostics.

What other partial discharge equipment and high-potential testers do you offer for hire?

Brandis Hire offers an extensive range of partial discharge equipment and high-potential testers, catering to diverse testing needs in the electrical sector. Here are some of the models we have in stock:

Partial discharge equipment:

High-potential testers:

How does the PDTD60-2 enhance safety and reliability in electrical systems?

The PDTD60-2 Partial Discharge Diagnostics System is a critical tool for detecting and analysing partial discharges in electrical cables and equipment, which are early indicators of potential insulation failures.

By identifying these issues before they escalate, the system can prevent potential electrical failures and outages. This proactive approach to maintenance is essential for any operation that depends on stable and secure electrical systems.
