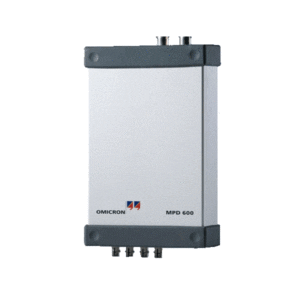

OMICRON MPD 600

High-performance partial discharge testing

The MPD 600 is an advanced partial discharge (PD) measurement and analysis system. It can be used for many different PD testing applications on electrical equipment. The modular system enables both single- and multi-channel PD measurements in test labs and in the field. All measurement signals are recorded, analyzed and displayed at the same time. Advanced noise suppression and source separation techniques ensure that only PD pulses from the test object are analyzed.

Key features

• Unsurpassed immunity to interference for partial discharge measurements, even under difficult operating conditions
• High measurement accuracy thanks to completely digital data processing
• Safe operation through use of fiber optic cables for complete galvanic isolation
• Recording and playback of measurements with full function control
• IEC 60270-compliant partial discharge measurement, confirmed by an independent testing institute

Applications

• Transformer testing
• On-site testing and fault localization in cables
• Gas-insulated switchgear (GIS) with extension (also in the UHF range)
• Measurements on rotating machines
• Lab measurements on medium and high-voltage components

Operation: Central rotary switch and function keys Working temperature range: -10 °C … +50 °C

Operating temperature range: 0 °C … +35 °C Nominal temperature range: 18 °C … +28 °C Storage temperature range: -30 °C … +60 °C

Battery life span: w Lithium ion batteries

Weight: 7kg without accessories
