ABB SACE PRO10/T

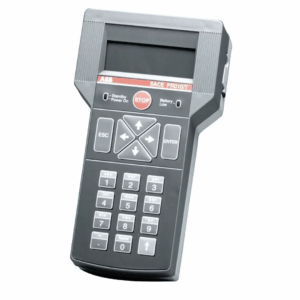

The ABB SACE PR010/T unit is an instrument capable of performing the functions of testing, programming and reading parameters for the protection units. For the specific functions, refer to the respective protection unit. All the functions mentioned may be carried out “on board” by connecting the SACE PR010/T unit to the front connector on the protection unit. Two different types of tests are available — automatic and manual.

It is also possible to perform the trip test through the SACE TT1 unit. By connecting to a PC (using the disc supplied by ABB SACE or software downloaded from the ABB wesite), it’s possible to upgrade the software of the SACE PR010/T unit. The unit can also save important test results, which may then be downloaded to a PC following a request for a test report. Moreover, the SACE PR010/T test unit is a portable instrument operated by rechargeable batteries and/or an external power supply.

The SACE PR010/T test unit uses a set of signals to perform its various testing, programming and reading functions. The main characteristics of these signals are as follows:

Vin: 100…240 Vac (47…63 Hz)

Vout: 12 Vdc ±5%

Max output current: 2.7A Size AA Type NiMH Voltage 1.2V

Capacity: 1300 mA/h

Output voltage range: – 5 … +12 Vdc

Maximum output current: 1A constant

Input voltage range: 0 … +15 Vdc

Minimum input impedance: 1 Mohm

Operation: Computer operated with the supplied software

Operating temperature range: 0 °C … +35 °C Nominal temperature range: 18 °C … +28 °C Storage temperature range: -30 °C … +60 °C

Battery life span: with IEC LR6/type AA: typ. 3000

Weight: 3kg

• Offers the flexibility to conduct both automatic and manual testing.
• Can be connected to a range of ABB SACE electronic relays, ensuring versatility across different types of electrical systems.
• Capable of testing, programming and reading parameters for protection units.
• Can monitor secondary inputs and verifying the programmed response of the circuit breaker.
• Equipped to test both the hardware and software components of SACE relays, providing a thorough assessment of the relay’s overall health and functionality.
• Designed with an intuitive interface for ease of use which the learning curve for new users.
• The lightweight and robust construction makes it suitable for field use and easy to transport between different work sites.
• Flexible power options with rechargeable batteries or an external power source.

• Electrical system diagnostics — The ABB SACE PRO10/T is pivotal in diagnosing low-voltage circuit breakers in electrical systems, ensuring their optimal functioning and safety. It’s especially valuable in power plants, substations and industrial facilities where reliable electrical performance is critical.
• Maintenance and repair — Essential for professional electricians, this device aids in routine checks and troubleshooting of circuit breakers. It ensures that any potential issues are identified and rectified swiftly, minimising downtime and enhancing system reliability.
• Quality assurance in manufacturing — In manufacturing, particularly of electrical components, the PRO10/T is used for quality assurance. It tests and validates circuit breakers and related equipment, verifying if they meet stringent safety and performance standards before market release.
• Education and training — This device is an excellent tool in educational institutions and activity centres. It provides hands-on experience in testing and programming electrical protection systems, equipping future engineers with practical skills.
• Research and development — In R&D settings, the PRO10/T is invaluable for testing new electrical technologies and materials. Its precise measurements and varied testing capabilities provide crucial data for innovation in electrical system design and safety.

Hire the ABB SACE PRO10/T today

Brandis Hire, your trusted partner in technical equipment rental, offers the ABB SACE PRO10/T for your specialised needs. Known for top-tier service and a wide selection of high-quality equipment, we make hiring absolutely hassle-free. With flexible service periods and nationwide delivery, we support your project’s success.

Hire the ABB SACE PRO10/T now and experience the Brandis Hire difference. Submit a booking request or contact us for more information.
