Omicron RIR1 SandC IntelliRupter Testing Package

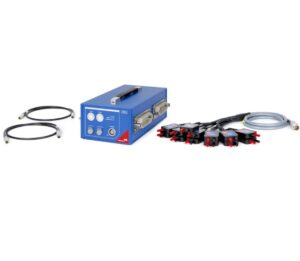

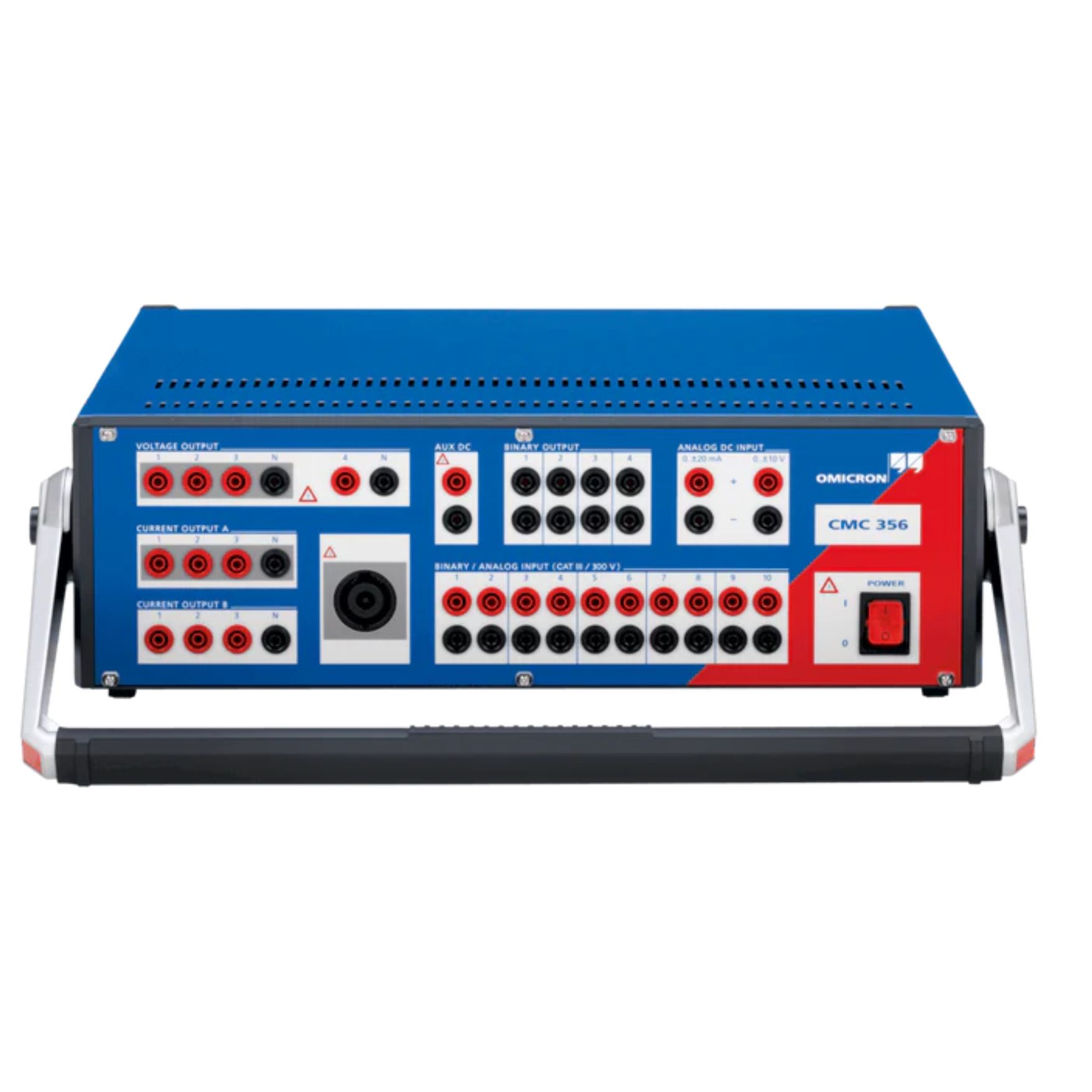

The RIR1 S&C IntelliRupter Testing Package is a plug in solution that interfaces analog and I/O status signals between the S&C control module to be tested and the S&C docking station. It comprises the interface box to be placed between the control module and the docking station and a wiring harness consisting of three keyed cables which connect the interface box to the CMC 356, CMC 353 or CMC 256plus test set. It also contains a pre-configured IntelliRupter test plan using standard Protection modules of OMICRON´s Test Universe PC software for automated testing. The test plan can easily be customized by the user. The CMC test set equipped with the LLO-2 option supplies 9 channels of low level analog signals (6 voltages and 3 currents) to the control module to simulate the following IntelliRupter sensor signals:

• X-Side Voltages (1-Gnd, 2-Gnd, 3-Gnd)
• Y-Side Voltages (1-Gnd, 2-Gnd, 3-Gnd)
• Currents (1, 2, 3)

The current sensors on the IntelliRupter are Rogowski coils which provide a voltage output that is proportional to the integral of the primary current. The CMC test set has a Rogowski coil simulation built-in to the low level outputs which is configurable via the test software, allowing the user to work with primary current values in the test modules.

Features

Dimensions: 23 x 15 x 37cm
